LAV II
Initial Operational Capability (IOC) : 1995
Total Production : 1,216
Total Cost : USD $520 million
Model | Status | Year | Produced |
---|---|---|---|
LAV II | Active | 1995 | 1,216 |
LAV II
Group : Wheeled Armored Vehicles
Status : Active
Also Known As : ASLAV, ASLAV T1, ASLAV T2, Coyote
Origin : Canada
Contractor : General Dynamics Land Systems-Canada
Initial Operational Capability (IOC) : 1995
Total Production : 1,216
Unitary Cost : USD $2.0 million
The LAV II, also know as the ASLAV, is a derivative of the combat proven LAV I employed by the USMC designed to meet the requirements of the Australian Army. It features high mobility, a 25mm turret-mounted main gun, lightweight armor, reduced maintainability and enhanced availability to perform reconnaissance missions.
The ASLAV entered service with the Australian Army in 1995. About 160 ASLAVs have been delivered to date to the Australian Army.
The Canadian Army procured 203 Coyote light armored vehicles intended to serve as high mobility reconnaissance and surveillance vehicle beginning in 1996. The vehicles are fitted with day and night observations systems, radar, infrared camera and laser rangefinder. Besides, the vehicle is fitted with a 25mm M242 Bushmaster cannon. A mast-equipped version of the vehicle raises its surveillance gear 10 meters above the ground to see hostile forces over obstacles and from protected positions.
The Australian Army plans to purchase up to 257 ASLAV vehicles with the first batch comprising 113 ASLAVs already delivered and a second one comprising 144 ASLAVs being delivered. In December 2003, General Dynamics was awarded a $9.8 million contract to upgrade batch 1 ASLAV vehicles to match batch 2 capabilities between 2004 and 2006.
In June 2004, Kongsberg announced that it was awarded a $3 million (MNOK 20) contract for the supply of Remote Weapons Control Systems (RWCS) in support of Australian ASLAV 2 (ASLAV batch 2) armored personnel carrier. The RWCS are identical to those that Kongsberg is delivering to the Armies of the United States, Finland and Norway. In March 2005, Kongsberg received a MNOK 40 ($6 million) contract for the supply of weapon control systems for ASLAV during 2005.
Operators
Country | Status | State | Notes |
---|---|---|---|
![]() | Active | 253/257 | |
![]() | Active | 56/203 | |
![]() | Active | 32 | Peruvian Marines order for 32 vehicles in July 2014 |
![]() | Active | 724 | Armored vehicles ordered in November 2009 to an undisclosed Foreign Military Sales customer |
![]() | Active | 64 | Transferred from Canada (64) in September 2024 |
Specifications
Notes | ||
---|---|---|
Crew | 3 | |
Troops | 6 | |
Wheel Drive | 8 | |
Wheels | 8 | |
Dimensions | ||
Height | 2.7 meter | |
Length | 6.5 meter | |
Main Gun Caliber | 25 millimeter | |
Width | 2.6 meter | |
Mass | ||
Combat Weight | 13,200 kilogram | |
Performance | ||
Max Range | 660 kilometer | |
Power | ||
Power | 275 shp | |
Speed | ||
Top Speed | 100 kph |
Gear
Medium Caliber Cannons | ||
---|---|---|
M242 Bushmaster | 1 | |
Weapon Stations | ||
Nemo | 1 | |
Protector | 1 |
News

This batch is already being prepared for shipment to Ukraine via Poland OTTAWA, September 6. /TASS/.
LONDON, Ontario, Canada – The Peruvian Ministry of Defence has awarded a USD$67 million contract to General Dynamics Land Systems-Canada for 32 Light Armoured Vehicles (LAVs)
ADELAIDE, SA, Australia – General Dynamics Land Systems-Australia (GDLS-A), a business unit of General Dynamics Land Systems-Canada in London, Ontario, received a five year, AU$44.
Patria Nemo 120 mm mortar system has been selected as one of the weapon systems for LAV II vehicles delivered by General Dynamics Land Systems - Canada as part of a Foreign
Patria Nemo 120 mm mortar system has been selected as weaponry for LAV II vehicles delivered by General Dynamics Land Systems - Canada as an FMS project by the US Government.
LONDON, Ontario – The U.S. Army TACOM Life Cycle Management Command, in support of the U.S. Army Security Assistance Command (USASAC), has awarded a USD$2.
LONDON, Ontario, Canada – General Dynamics has developed the LAV H High-Capacity Technology Demonstrator in response to evolving operational requirements and customer needs
Photo Gallery
September 2010

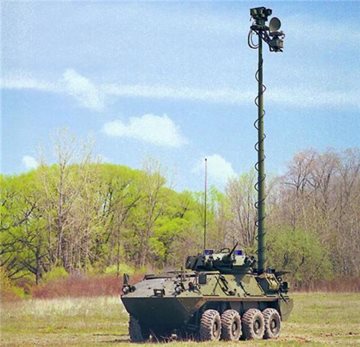

Canadian Coyote equipped with observation mast
Notes
State Latest Known holdings/Original Procurement
Com - Date of Commissioning
Decom - Date of Decommissioning
