PGZ-04A

Initial Operational Capability (IOC) : 1999
Total Production : 300

Model	Status	Year	Produced
PGZ-04A	Active	1999	300

PGZ-04A

Group : Local Air Defenses
Status : Active
Also Known As : PGZ-95, Type 95
Origin : China
Contractor : NORINCO
Initial Operational Capability (IOC) : 1999
Total Production : 300

The People's Liberation Army (PLA) PGZ-04A, also known as PGZ-95 or Type 95, is a short-range, self-propelled gun and missile air defense system. It is equipped with four Type 87 25mm cannons and optionally four QW-2 short-range surface-to-air missiles to engage a variety of low altitude flying aircraft and missiles. The vehicle is fitted with its own CLC-1 radar, electro-optical sensors and fire control system mounted on an armored tracked chassis which signals its suitability to be deployed along front-line armored units anywhere on the battlefield. The Type 95 can be deployed individually or within a battery. A battery consists of six Type 95 vehicles, a command and control vehicle with longer range radar, and three ammunition re-supply vehicles. The PLA introduced this air defense system in the late 1990s.

Operators

Country	Status	State	Notes
China	Active	300

Specifications

		Notes
Ammunition Load	1000	25mm rounds
Crew	3
Number of Cannons	4
Number of Weapons	4
Rolling Rubber Wheels	6
Dimensions
Height	4.8 meter
Length	6.7 meter
Main Gun Caliber	25 millimeter
Width	3.2 meter
Mass
Combat Weight	22,500 kilogram
Performance
Main Gun Max Range	2,500 meter
Max Detection Range	11 kilometer
Max Range	450 kilometer
Target's Max Altitude	2,000 meter
Rate
Max Rate of Fire	600 roundperminute
Speed
Top Speed	53 kph

Gear


Surface-to-Air Missiles
QW-2	4

Photo Gallery

November 2021

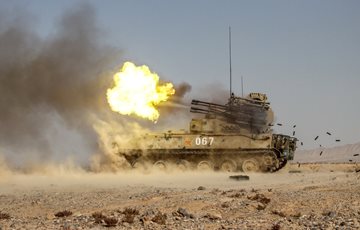

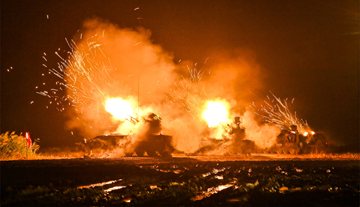

A 25mm self-propelled anti-aircraft gun attached to a combined arms regiment under the PLA Nanjiang Military Command fires at mock aerial target during a live-fire training exercise in late October, 2021

July 2020

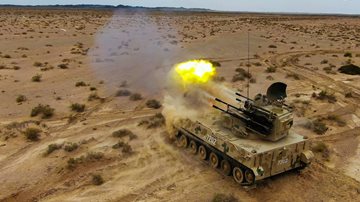

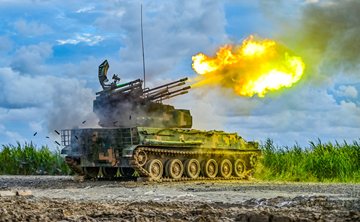

An anti-aircraft artillery system attached to an antiaircraft gun detachment with a brigade under the PLA 76th Group Army fires surface-to-air guns at mock attack helicopter during a fire strike operation of a recent realistic training exercise in northwest China's Gobi desert

March 2020

Armored vehicles attached to an air-defense detachment of a combined brigade under the PLA 78th Group Army rumble on a rugged mountain road during a driving skills training exercise on March 10, 2020

August 2019

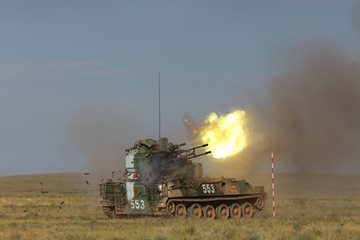

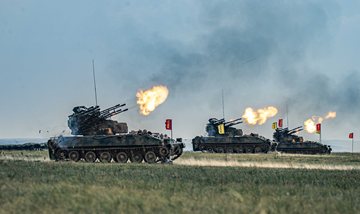

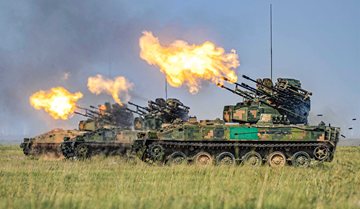

An anti-aircraft gun attached to a combined brigade under the PLA 79th Group Army fires at mock aerial targets during a coordinated combat training exercise in Jiuquan, northwest China's Gansu Province lately

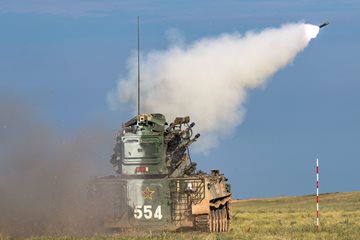

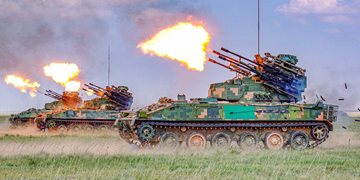

An anti-aircraft gun missile armored vehicle attached to a combined brigade under the PLA 79th Group Army fires at mock aerial targets during a coordinated combat training exercise in Jiuquan, northwest China's Gansu Province lately

August 2017

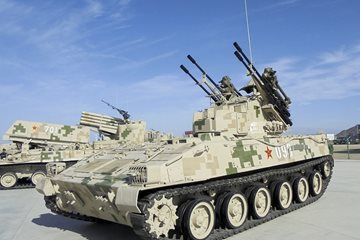

Chinese Army Type 95 air defense system at Korla test site on August 7, 2017

May 2017

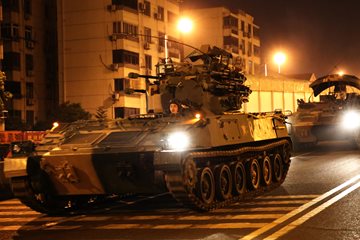

A convey of PGZ95 (Type 95) 25mm self-propelled anti-aircraft artilleries attached to a brigade under the PLA Eastern Theater Command moves in formation in an urban area on May 15, 2017
