TRT
Initial Operational Capability (IOC) : 2010
Total Production : ?

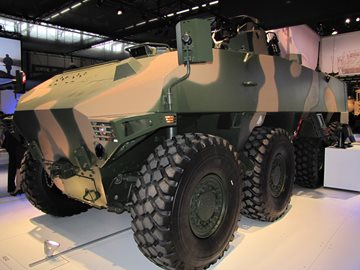

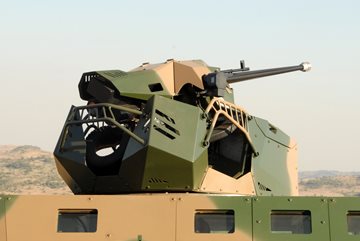

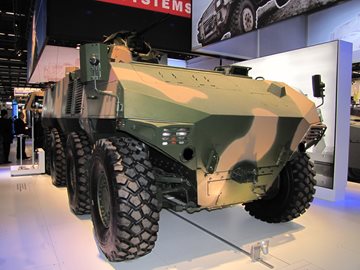

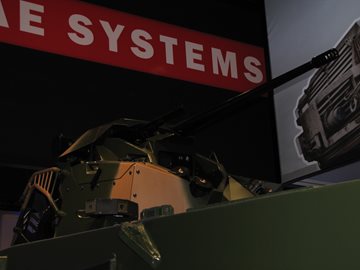

The BAE Systems Tactical Remote Turret (TRT) is a low-cost remote control weapon station developed for integration onto the latest generation of infantry fighting vehicles (IFVs), mine protected vehicles (MPVs) and light armored vehicles (LAVs). The TRT-25 features a 25mm Bushmaster cannon on a lightweight and compact mount. It has been designed to engage targets at ranges in excess of 2,000 meters in day/night conditions with high accuracy and secondarily can be used for observation of the theater of operations. The TRT-25 was first displayed by BAE Systems integrated onto the RG41 8x8 wheeled combat vehicle at the Eurosatory 2010 exhibition.
| Model | Status | Year | Produced |
|---|---|---|---|
| TRT-25 | Active | 2010 | ? |
| TRT-R30MK | Active | 2012 | ? |
TRT-25
Group : Weapon Stations
Status : Active
Also Known As : Tactical Remote Turret, TRT-B25
Origin :
United States of America
Contractor : BAE Systems
Initial Operational Capability (IOC) : 2010
Total Production : ?
Besides the 25mm M242 Bushmaster cannon with dual-feed 2x130-round bins, the TRT-25 is fitted with a 7.62mm machine gun with 1,000 rounds and four 76mm smoke grenade launchers. The M242 Bushmaster cannon can be replaced with other small caliber weapons. The TRT-25's stabilization provides full operation when on the move, with automatic optical target tracking after manual lock-on. The turret has a video based electro-optical gunner sight and all cameras use auto-focus, with superior levels of detection, recognition and identification. A newly developed rapid engagement function will significantly reduce the time for target engagement. The laser range finder on the TRT-25 has a range in excess of 12km.
Specifications
| Notes | ||
|---|---|---|
| Magazine Capacity | 260 | |
| Degree | ||
| Coverage in Elevation | 75 ° | -10-degree to +65-degree |
| Max Elevation | 65 ° | |
| Dimensions | ||
| Height | 1.1 meter | |
| Main Gun Caliber | 25 millimeter | |
| Width | 1.3 meter | |
| Mass | ||
| Combat Weight | 850 kilogram | |
Gear
| Medium Caliber Cannons | ||
|---|---|---|
| M242 Bushmaster | 1 | |
TRT-R30MK
Group : Weapon Stations
Status : Active
Origin : United States of America
Contractor : BAE Systems
Initial Operational Capability (IOC) : September 2012
Total Production : ?

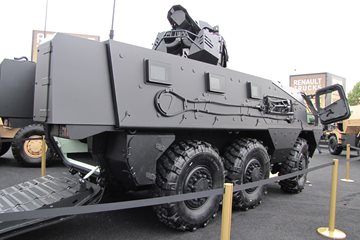

The TRT-R30MK is a new TRT remote turret family variant equipped with a 30mm NATO standard cannon capable of taking out targets at more than 2,500 meters. Besides, the new turret also accepts smaller caliber guns. The system is equipped with electro-mechanical drives and high performance sight equipment to allow for all round observation, fast reaction time and accurate firing on the move during day and night operation. BAE Systems unveiled the TRT-R30MK weapon station at the Africa Aerospace and Defence exhibition in September 2012.
Specifications
| Notes | ||
|---|---|---|
| Number of Barrels | 1 | |
| Dimensions | ||
| Main Gun Caliber | 30 millimeter | |
| Performance | ||
| Main Gun Max Range | 2,500 meter | |
News
BAE Systems today launched the latest 6x6 variant of the RG35 family of vehicles – the RG35 multi-purpose blast protected fighting vehicle – at the 2012 Africa Aerospace
BAE Systems is launching its newly designed tactical remote turret, the TRT-R30MK, at the 2012 Africa Aerospace and Defence exhibition from 19 – 21 September.
