C28A
Initial Operational Capability (IOC) : November 2015
Total Production : 3
Model | Status | Year | Produced |
---|---|---|---|
C28A | Active | 2015 | 3 |
C28A
Group : Frigates
Status : Active
Also Known As : Adhafer
Origin : China
Contractor : Hudong-Zhonghua Shipbuilding
Initial Operational Capability (IOC) : November 2015
Total Production : 3
The C28A is a new class of frigate designed and built in China for the export market. The ship leverages the Type 054A design but is less capable in terms of weaponry. The C28A frigate, also referred to as corvette, is equipped with a 76mm PJ-26 naval gun, eight C-802 anti-ship missiles, eight FM-90N short-range surface-to-air missiles, two 30mm Type 730 close-in weapon systems and two triple 324mm torpedo tubes. Besides, these vessels are equipped with a flight deck and hangar for operation of one one ASW helicopter such as the AgustaWestland Super Lynx. The Algerian Navy ordered three C28A class frigates to be commissioned in 2015.
Operators
Country | Status | State | Notes |
---|---|---|---|
![]() | Active | 3/3 |
Specifications
Notes | ||
---|---|---|
Number of Aircraft | 1 | |
Number of Weapons | 16 | |
Torpedo Tubes | 6 | 324mm |
Dimensions | ||
Beam | 14.4 meter | |
Draft | 3.9 meter | |
Length | 120 meter | |
Main Gun Caliber | 76 millimeter | |
Mass | ||
Full Displacement | 3,000 ton | |
Standard Displacement | 2,800 ton | |
Speed | ||
Top Speed | 30 knot |
Gear
Anti-Ship Missiles | ||
---|---|---|
C-802 | 8 | |
ASW Helicopters | ||
Super Lynx | 1 | |
Naval Gun Systems | ||
PJ26 | 1 | |
Radar Systems | ||
SMART-S Mk2 | 1 | |
Sea-Based Air Defense Systems | ||
Type 730 | 2 | |
Surface-to-Air Missiles | ||
FM-90N | 8 |
Listing
Ship | Status | Com | Decom |
---|---|---|---|
![]() |
Active | November 2015 | |
![]() |
Active | March 2016 | |
![]() |
Active | August 2016 |

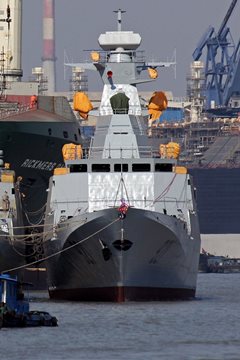

Photo Gallery
Notes
State Latest Known holdings/Original Procurement
Com - Date of Commissioning
Decom - Date of Decommissioning
