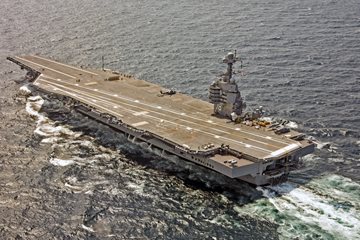

CVN 78 Gerald R. Ford

Initial Operational Capability (IOC) : July 22, 2017
Total Production : 10
Total Cost : USD $40 billion

The US Navy's CVN 21 is a new class of aircraft carrier considered as a Nimitz class follow-on designed to operate well into the 21st century and to survive to the next generation threats. It will be very automated reducing crew workload and increasing efficiency. The CVN 21 aircraft carrier will feature an entirely new nuclear propulsion plant with fewer operators and lowering life cycle costs. The ship will replace current steam systems with electrical auxiliaries. The new carrier will be provided with new sensors, a new safer aircraft recovery system, and other systems that will reduce operational costs and workload. The US Navy original plans called for the procurement of two CVN 21 carriers through 2018. It was expected that in 2018 the US Navy will aircraft carrier fleet will consists of 10 Nimitz class and 2 CVN 21 class carriers. A third CVN 21 class carrier was meant to be commissioned in 2025 replacing the CVN 68 USS Nimitz aircraft carrier. The program was re-named CVN 78 Gerald R. Ford and calls for the procurement of 11 ships by 2058.

Model Status Year Produced
CVN 78 Gerald R. Ford Active 2017 1
CVN 79 John F. Kennedy Under Development 2025 9



CVN 78 Gerald R. Ford

Group : Aircraft Carriers
Status : Active
Also Known As : CVN 21 (US Navy's early designation)
Origin : United States of America
Contractors : Newport News Shipbuilding*, Huntington Ingalls Industries
Initial Operational Capability (IOC) : July 22, 2017
Total Production : 1
Unitary Cost : USD $13.4 billion

On May 21, 2004, Northrop-Grumman Newport News was awarded a three-year $1.4 billion preparation construction contract of CVN 21 aircraft carrier. This contract covers risk reduction, material procurement, design and engineering through fiscal year 2007. Each ship of the class is valued at approximately $8 billion. Construction of the lead ship started in 2007 to be commissioned by the US Navy in 2014. It features an enhanced flight deck, improved weapons movement, a redesigned island, a new nuclear power plant and reduced manning. It is expected that CVN 21 class ships characteristics will ease new technologies insertion workload. The program entered into the system development and demonstration phase in April 2004, and the scope of the program was expanded including three carriers instead of two as planned early and the program total value raising to $31.75 billion.

The Raytheon company was selected as the CVN-78's industry lead integrator for warfare systems integration of all onboard weapon systems and electronics operations on April 14, 2005. The CVN-78 aircraft carrier will include Raytheon's Total Ship System Engineering approach to a common enterprise computing environment that maximizes multi-mission capabilities. The CVN 78 to be commissioned in March 2016 will feature the state-of-the-art Dual Band Radar (DBR). These aircraft carriers will operate the F/A-18E/F Super Hornet, EA-18G Growler electronic attack aircraft, E-2D Advanced Hawkeye airborne radar aircraft and the F-35C Lightning II stealth fighter as well as a variety of rotary wing aircraft. Before 2030 this ship will operate the emerging UCLASS unmanned combat aircraft as well as the F/A-XX sixth generation combat aircraft beyond 2035.

Operators
Country Status State Notes
United States of AmericaActive 1 The US Navy plans call for 11 Ford-class aircraft carriers through 2058
Specifications
Notes
Crew 4539
Number of Aircraft 75
Number of Engines 4
Dimensions
Beam 40.8 meter
Flight Deck Width 78 meter
Length 333 meter
Mass
Full Displacement 100,000 ton
Speed
Top Speed 30 knot
Time
Service Life 50 year
Gear
Airborne Early Warning Aircrafts
E-2D Advanced Hawkeye4
ASW Helicopters
MH-60R Strikehawk14
Combat Management Systems
CEC1
SSDS MK 21
Electronic Attack Aircrafts
EA-18G Growler7
High-Speed Interceptors
F/A-XX
Jamming Systems
AN/SLQ-32C(V)61
MFEW1
Military Transport Aircrafts
C-2A Greyhound2
Multi-Role Fighters
F/A-18E Super Hornet36
F/A-18F Super Hornet36
F-35C Lightning II20
Radar Systems
DBR1
Surface-to-Air Missiles
ESSM
VTOL Military Transport Aircrafts
CMV-22B Osprey
Listing
Ship Status Com Decom
CVN 78 USS Gerald R. Ford Active July 22, 2017



CVN 79 John F. Kennedy

Group : Aircraft Carriers
Status : Under Development
Origin : United States of America
Contractors : Huntington Ingalls Industries, Newport News Shipbuilding
Initial Operational Capability (IOC) : 2025
Total Production : 9
Unitary Cost : USD $11.4 billion

The US Navy's CVN 79 John F. Kennedy class differs from the CVN 78 Gerald R. Ford because the Dual Band Radar (DBR) was replaced by the less capable but more affordable Enterprise Air Surveillance Radar (EASR) along with the SPQ-9B fire control radar. This change was carried out by the US Navy in order to reduce costs of the newest aircraft carriers while providing increased commonality across platforms. The CVN 79 will be commissioned in the 2023-2025 timeframe with another nine additional aircraft carriers to follow through 2058. These aircraft carriers will operate the F/A-18E/F Super Hornet, EA-18G Growler electronic attack aircraft, E-2D Advanced Hawkeye airborne radar aircraft and the F-35C Lightning II stealth fighter as well as a variety of rotary wing aircraft. Before 2030 this ship will operate the emerging UCLASS unmanned combat aircraft as well as the F/A-XX sixth generation combat aircraft beyond 2035.

Operators
Country Status State Notes
United States of AmericaPlanned 9
Specifications
Notes
Time
Service Life 50 year
Gear
Airborne Early Warning Aircrafts
E-2D Advanced Hawkeye4
ASW Helicopters
MH-60R Strikehawk
Combat Management Systems
SSDS MK 21
Electronic Attack Aircrafts
EA-18G Growler7
High-Speed Interceptors
F/A-XX
Jamming Systems
MFEW1
Multi-Role Fighters
F/A-18E Super Hornet36
F/A-18F Super Hornet36
F-35C Lightning II20
Radar Systems
AN/SPQ-9B1
AN/SPY-6(V)31
VTOL Military Transport Aircrafts
CMV-22B Osprey
Listing
Ship Status Com Decom
CVN 79 USS John F. Kennedy Under Construction 2025
CVN 80 USS Enterprise Under Construction 2028
CVN 81 USS Doris Miller Under Construction 2032
CVN 82 USS William J. Clinton Planned 2036
CVN 83 USS George W. Bush Planned 2040
CVN 84 Planned 2044
CVN 85 Planned 2048
CVN 86 Planned 2052
CVN 87 Planned 2056
CVN 88 Cancelled 2058

News

Friday, 8 November, 2024
US Navy Orders Support for the Dual Band Radar Through 2026

Raytheon Co., Tewksbury, Massachusetts, was awarded a $93,934,273 cost-plus-fixed-fee, cost-only, and firm-fixed-price modification to previously awarded contract N00024-22-C-5501

Friday, 23 June, 2023
US Navy Orders Additional Engineering and Integrated Logistics Support for Pre-Commissioning Unit John F. Kennedy Aircraft Carrier Through 2025

Huntington Ingalls Inc., Newport News, Virginia, is awarded a $274,041,192 fixed-price incentive (firm target) and a $119,213,388 cost-plus-fixed-fee and cost-plus-incentive-fee

Wednesday, 7 June, 2023
US Navy Orders Electromagnetic Aircraft Launch System for CVN 81 Aircraft Carrier to Be Delivered by 2032

General Atomics, San Diego, California, is awarded a $1,195,545,808 fixed-price incentive (firm-target), firm-fixed-price, cost-plus-fixed-fee modification (P00007) to a

Wednesday, 21 September, 2022
US Navy Orders Upgrades for Dual Band Radars

Raytheon Co., Tewksbury, Massachusetts, is awarded a $160,171,318 firm-fixed-price, cost-plus-fixed-fee, and cost-only contract for Dual Band Radar (DBR) design agent and

Tuesday, 12 July, 2022
US Navy Achieves 10,000 Catapult Launches and Arrested Landings using EMALS Electromagnetic Catapult

SAN DIEGO – 12 July 2022 - General Atomics Electromagnetic Systems (GA-EMS) announced today that 10,000 catapult launches and arrested landings using the Electromagnetic

Friday, 17 July, 2020
US Navy Orders Six Enterprise Air Surveillance Radars

Raytheon Missiles and Defense, Marlborough, Massachusetts, is awarded a $125,881,928 fixed-price, incentive fee modification to previously awarded contract N00024-16-C-5370

Thursday, 23 April, 2020
USS Gerald Ford Aircraft Carrier Passes Flight Deck Certification

SAN DIEGO, CA, 23 APRIL 2020 - General Atomics Electromagnetic Systems (GA-EMS) announced today that successful USS Gerald R.

Tuesday, 4 June, 2019
Ford-Class Combat System Passes Dual-Target Test using Newest SSDS

TEWKSBURY, Mass., June 4, 2019 /PRNewswire/ -- Raytheon Company (NYSE: RTN) and the U.S. Navy completed the final developmental test of the latest generation of the Ship

Tuesday, 19 March, 2019
US Navy EASR Radar to Enter Live Testing

TEWKSBURY, Mass., March 19, 2019 /PRNewswire/ -- Raytheon Company's Enterprise Air Surveillance Radar just took a 12-hour trip down the Eastern Seaboard.

Thursday, 7 February, 2019
USS Ford Aircraft Carrier Successfully Tests SSDS Air Defense System

The US Navy’s new Ford-class aircraft carriers just got a little closer to being safer on the high seas, thanks to a successful test Tuesday of the Ship Self Defense System.

Thursday, 31 January, 2019
US Navy Awards Contract for Construction CVN 80 and CVN 81 Aircraft Carriers

Huntington Ingalls Industries - Newport News Shipbuilding, Newport News, Virginia, is awarded the detail design and construction (DD&C) efforts for nuclear-powered aircraft

Thursday, 19 October, 2017
Indian Navy Vishal Aircraft Carrier to Get EMALS Catapult

The Electromagnetic Aircraft Launch System (EMALS) to help jets take off from aircraft carriers - which has only just been tested on the US Navy’s brand new USS Gerald Ford

Photo Gallery

Notes

* Prime Contractor
State Latest Known holdings/Original Procurement
Com - Date of Commissioning
Decom - Date of Decommissioning
